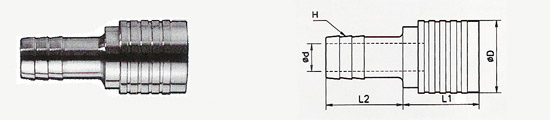

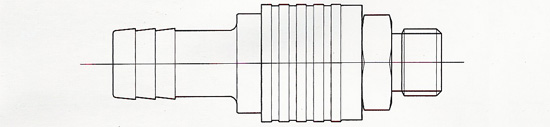

SHORT COUPLER SERIES |
|||||||
|
Quick Coupler - |
SERIES | H | d | L1 | L2 | D | |
| QCH 3/8 | 3/8" | 8 | 24 | 25 | 24 | o | |
| QCH 1/2 | 1/2" | 9 | 24 | 25 | 24 | o | |
 |
|||||||
|
H=Hose Pipe Size |
|||||||
|
|
||||||
|
PERFORMANCE |
||||||
| Seal Type | Code |
Operation Temp. |
Working Pressuer kg/cm2 |
Max. Pressuer kg/cm2 |
Remarks | |
| Silicon | SI | +800C | 10 | 15 | Standard | |
| Viton | VI | +1800C | 10 | 15 | Optional | |
 |
||||||
|
|
||||||
